Description
Objectives
- To efficiently heat approximately 6,000sqm of pool concourse areas surrounding all four pools at the new Adelaide Aquatic Centre.
- Working in collaboration with Watson Fitzgerald and Sarah Construction to deliver a large-scale commercial hydronic heating system to the highest standard.
- Design, supply and install a robust on-slab hydronic solution suitable for high-traffic aquatic environments with consistent, even heat distribution.
Project Scope
- Watson Fitzgerald and Sarah Construction engaged Eckermann Heating & Cooling to design and install a customised on-slab heating solution for the expansive pool surrounds of the Adelaide Aquatic Centre.
- Due to the size and operational demands of the facility, a fully insulated on-slab system was selected to deliver efficient radiant heat across all concourse areas while maintaining durability and long-term performance in a wet commercial environment.
- The system has been engineered to provide consistent surface temperatures, improved patron comfort, and effective heat distribution across large open areas with heavy foot traffic.
System Design
Main flow and return lines were integrated within the structural slab, with insulated panels installed above the slab prior to pipe installation.
High-density closed-cell insulation was selected to suit commercial loading requirements and protect thermal performance in a moisture-prone environment.
Multiple stainless steel manifolds distribute 45-degree heating water from the central plant to the individual heating circuits surrounding all four pools.

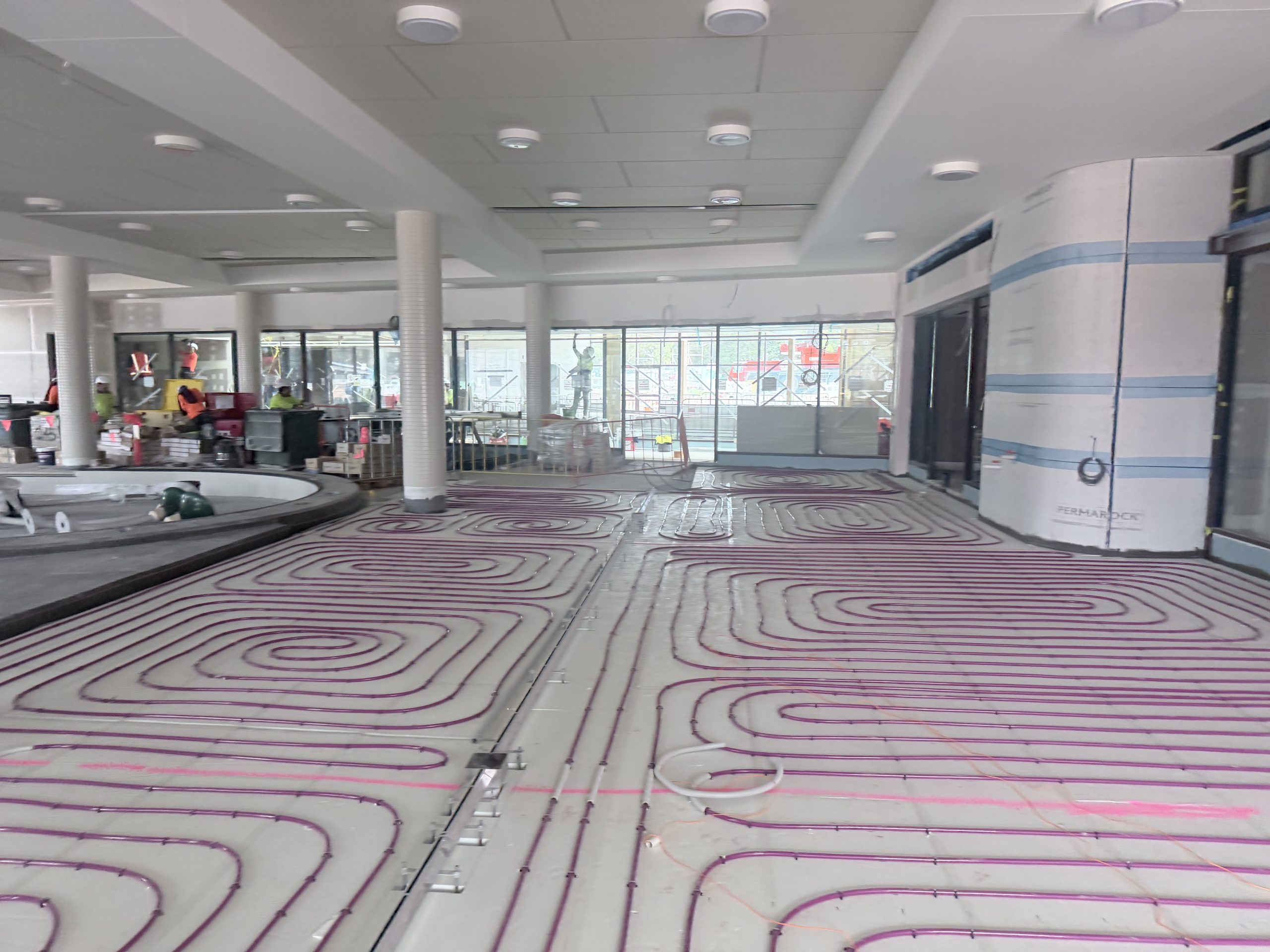

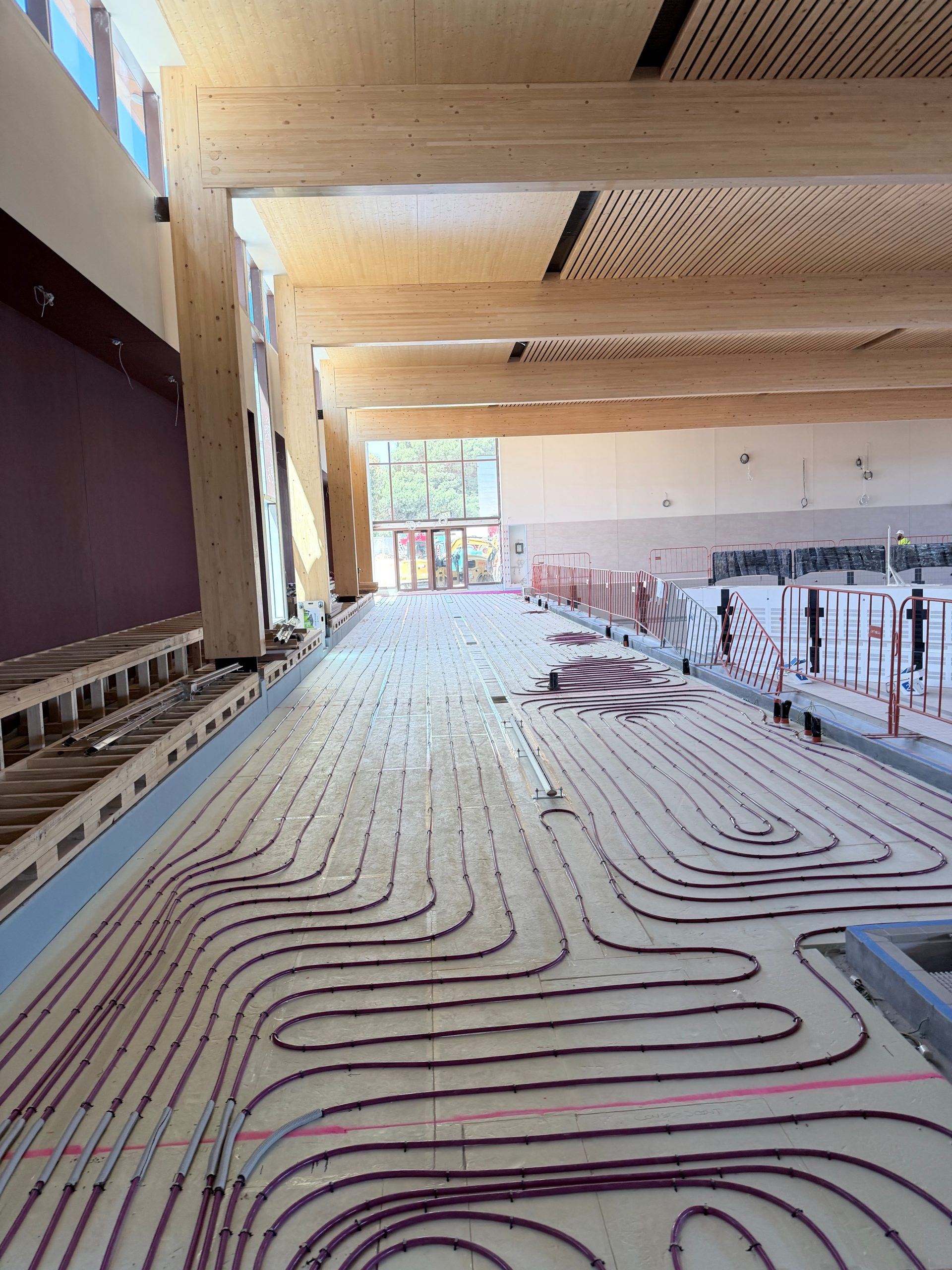

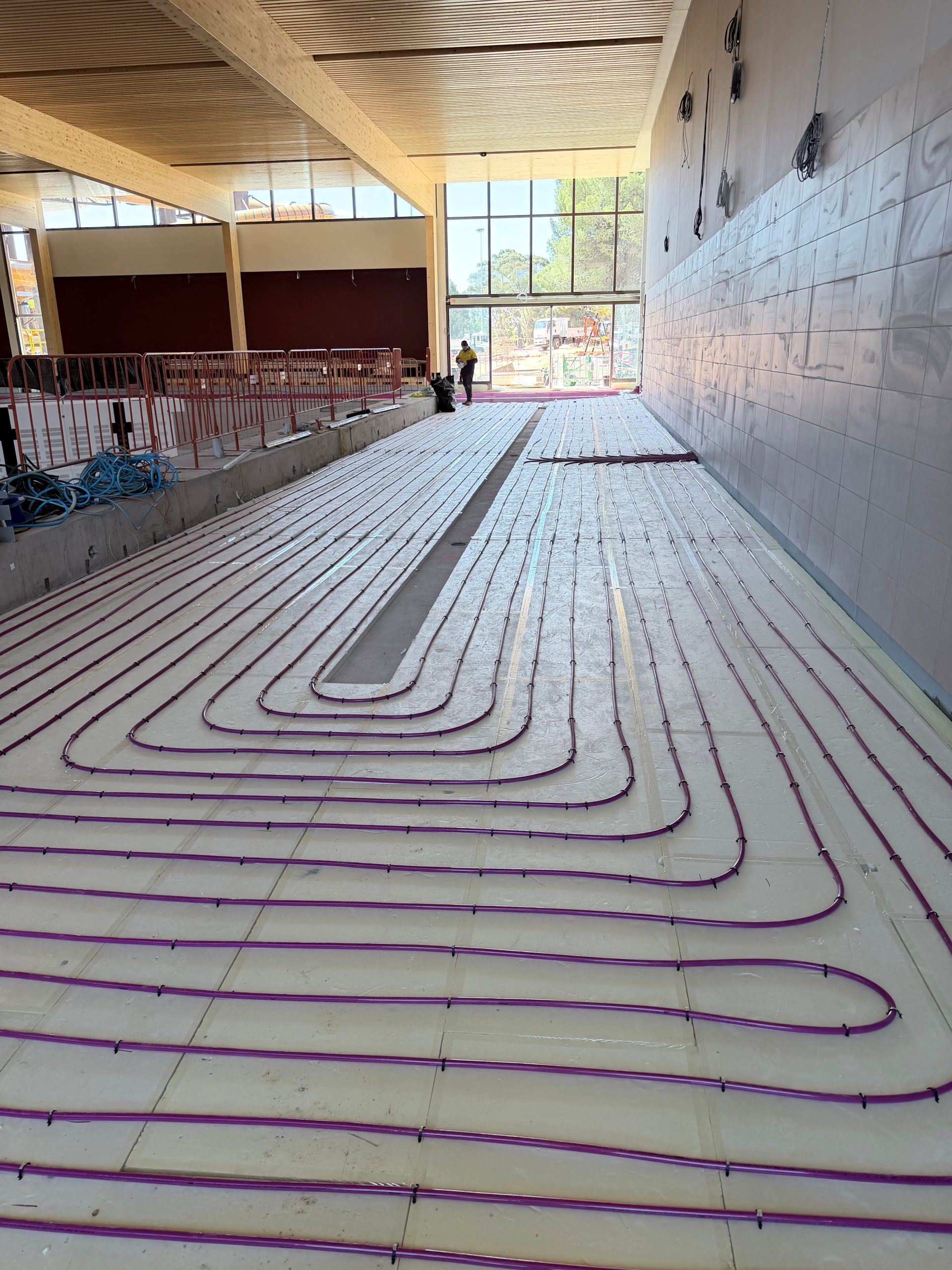

The floor heating circuits have been installed in a double meander pattern to ensure even heat dispersion and eliminate cold spots across large open concourse zones.
The selected installation methodology provided efficiency in pipe layout while maintaining installation speed across the significant 6,000sqm footprint.
Performance & Floor Drying Benefits
The hydronic system not only provides year-round radiant comfort, but also plays a critical role in drying the pool surrounds.
By gently warming the slab surface, the system accelerates evaporation of surface moisture, reducing standing water and improving slip resistance.
This contributes to a safer environment for patrons while assisting facility management in maintaining dry, comfortable walkways in a high-moisture aquatic setting.
Project outcome
The Adelaide Aquatic Centre is now open to the public, with the hydronic floor heating system fully commissioned and operational.
The completed 6,000sqm on-slab system is delivering consistent, energy-efficient radiant heat across all pool surrounds, ensuring safe surface temperatures and enhanced comfort for patrons year-round.
This project stands as a significant commercial installation, demonstrating Eckermann Heating & Cooling’s capability to design and deliver large-scale hydronic so
